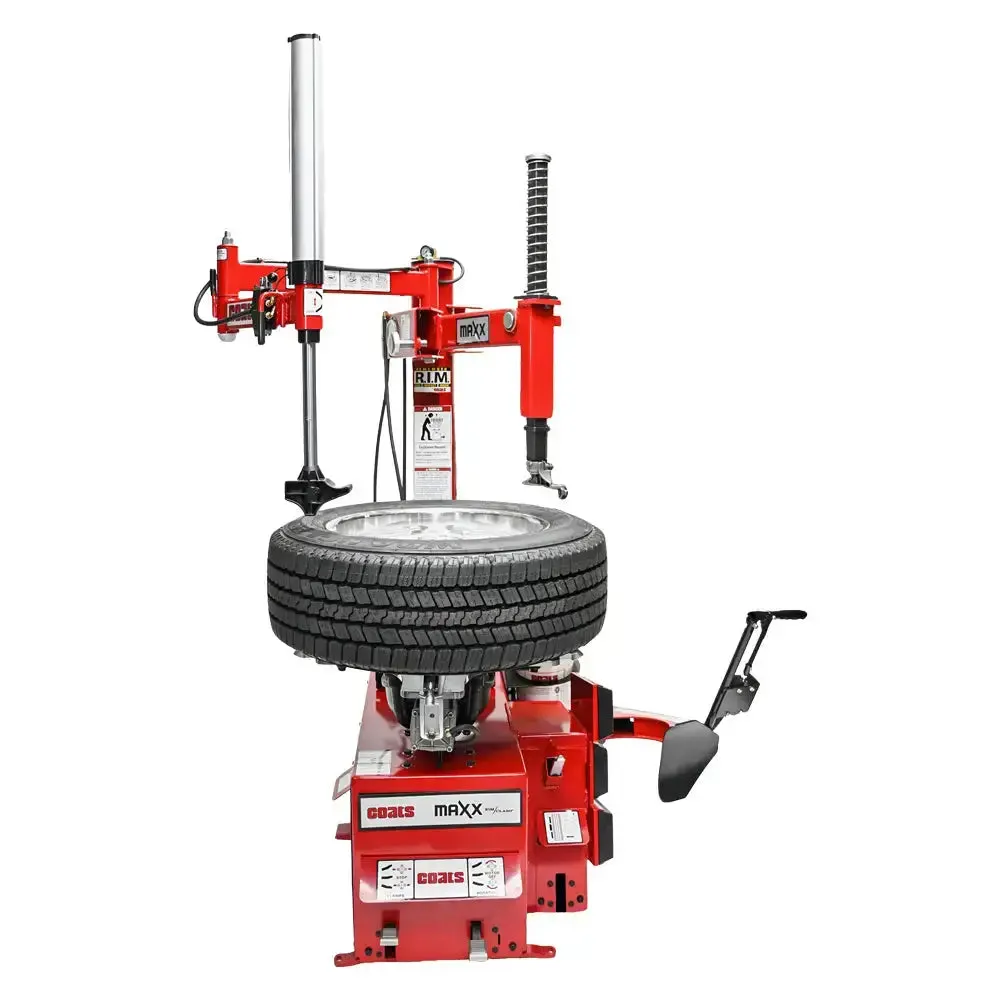

Introducing the brand new Coats MAXX 70 Air Driven Rim Clamp Tire Changer - the latest addition to the MAXX series. This powerful tire changer boasts a huge clamping range of 6-24" in diameter and up to 16” wide, a dual nozzle bead sealing system, and a Robo-Arm helper device. However, it does not have the foot pedal operated bead breaking capability compared to MAXX 80/90. With its rock-solid construction and intuitive design, the MAXX 70 is the perfect tire changer for high-volume shops, replacing outdated 60X Series models. Designed and built in Nashville, Tennessee, the Coats MAXX 70 Air Driven Rim Clamp Tire Changer is the latest and greatest in the MAXX series, ready to take your shop to the next level.
Features:
- Engineered for durability, it takes on the toughest jobs with ease.
- Intuitive design for confident handling of delicate wheels.
- Rugged construction ensures long-lasting use.
- Huge clamping range of 6-24" diameter, up to 16” width.

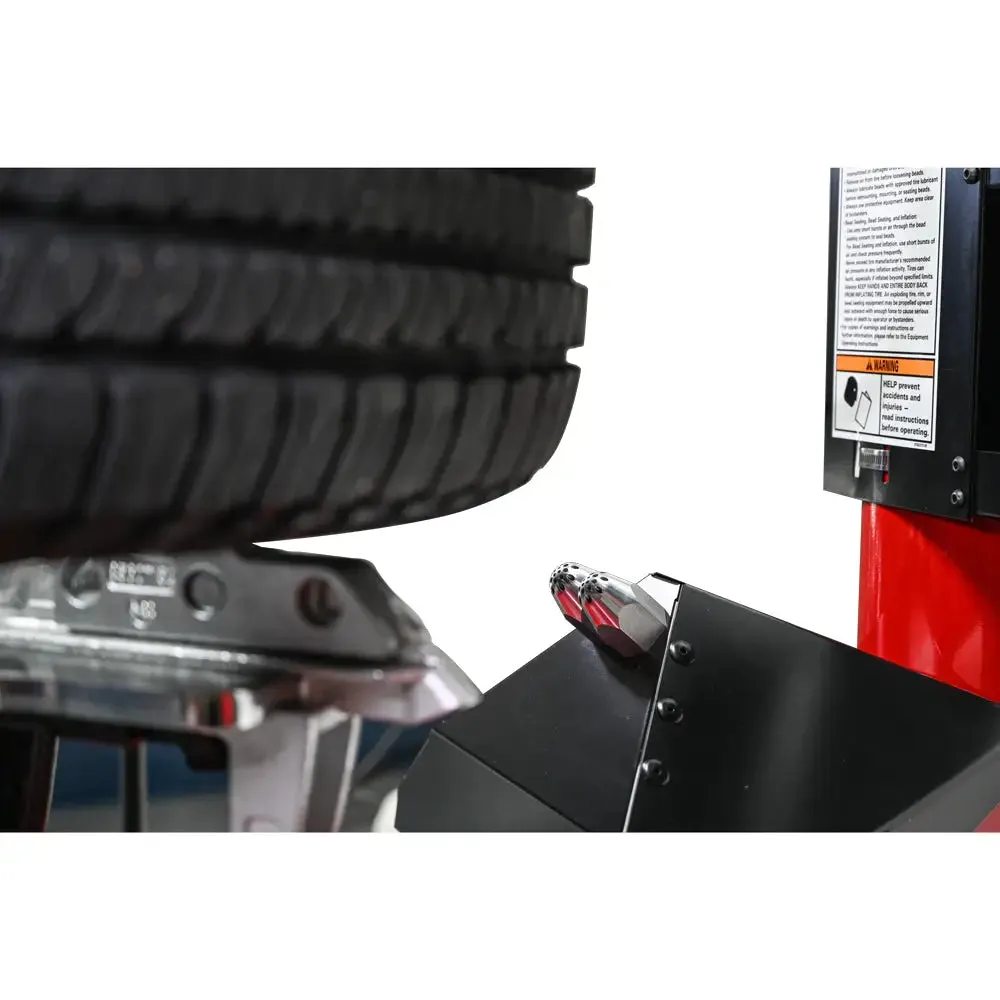

- Dual nozzle bead sealing system quickly fills tires with air.
- Robo Arm Helper Device mounts and dismounts tires effortlessly.
- Steel 3-Position Clamps for 6-24" external clamping range.
- Designed and built in the heartland of the USA.
- Replaces 60X Series Tire Changer; praised by customers and engineers.
Specs:
Rim Diameter: 6in-24in ExternalRim Width: 16in
Tire Diameter: 50in
Drive System: 220V 2 HP Electric, 110V Electric Motor or Air Motor
Bead Loosening Width: Up to 22in Wide
Wheel Clamping System: 4 Clamps, Air Cylinder Operated
Bead Seating Air Volume: 5.4 Gallons in Tower
Footprint: 74inw x 48ind x 85inh
Shipping Weight: 805 lbs.
Part Number:
- Air: 800MAXX70A
Warranty: 3-Year Parts, 6 Months Labor
Ref No:
800MAXX70220 (220V Model)
800MAXX70 (110V Model)
800MAXX70A (Air)
Supercede Model:
130060XE (Obsolete Elec. Model)
60X Electric
Application:
Shop TypesTire Dealers (High Volume)
General Repair Shop
Tire Type:
OE Passenger
Light Truck
SUV
Medium Truck
Wheel:
Alloy
Steel
Includes:
Paste Lube Bracket & BrushPolymer Duckhead
Steel Duckhead® Mount/Demount Tool
Steel Clamps
Optional
Grip-max 2.0 24in clamps
4 x Grip-max 2.0 30in Extended clamps
Foot-operated bead loosener kit
Robo-Roller bead roller arm kit
